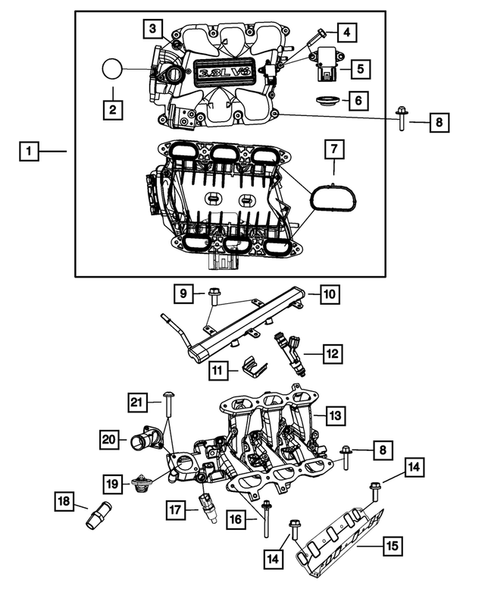

Manifolds for 2007 Chrysler Pacifica
No.
Part # / Description / Price
Price
1
Intake Manifold Plenum
Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: Includes Items 2,3,5,6,7
1
Intake Manifold Plenum Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: See Important Note. 04593899AA Throttle Body Gasket Must Be Used With 04781578AP Recessed Lip
MSRP $421.00
$273.90
MSRP $421.00
$273.90
2
Throttle Body Gasket Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: See Important Note. Used With 04781578AM Intake Manifold Plenum Flush Lip
MSRP $25.60
$18.39
MSRP $25.60
$18.39
3
MSRP $31.70
$22.75
5
Map Sensor Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: After 07/21/14. Up to 05/30/05.
MSRP $84.25
$55.89
MSRP $84.25
$55.89
6
Egr Tube Seal Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Plastic Plenum.
MSRP $26.20
$19.00
MSRP $26.20
$19.00
7
Intake Manifold Seal, Upper Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: Plenum
MSRP $19.55
$14.04
MSRP $19.55
$14.04
8
Hex Head Lock Bolt, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M6X1.00X30.00. Upper Intake Plenum To Lower Intake Manifold
9
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M6x16x14. SCR Dosing Module to Exhaust Pipe
MSRP $8.30
$5.99
MSRP $8.30
$5.99
11
Fuel Injector Clip Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
MSRP $39.95
$28.86
MSRP $39.95
$28.86
12
MSRP $207.00
$137.64
14
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M6X1.00X20.00. Camshaft Thrust Plate To Cylinder Block
15
Intake Manifold Gasket, Lower Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: Intake
MSRP $46.75
$32.26
MSRP $46.75
$32.26
16
Hex Flange Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M8X1.25X70.00. Lower Intake Manifold To Cylinder Head
MSRP $8.85
$6.23
MSRP $8.85
$6.23
17
Coolant Temperature Sensor Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Engine coolant temperature
18
Nipple Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: .375-18X2.00. Also Serviced With Cover
MSRP $15.85
$11.50
MSRP $15.85
$11.50
19
Thermostat Housing Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Includes Thermostat,Seal,Water Inlet Tube and Hose
MSRP $91.10
$60.66
MSRP $91.10
$60.66
21
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M6X1.0X30.00. MECHANICAL PUMP TO CASE
MSRP $6.20
$4.42
MSRP $6.20
$4.42

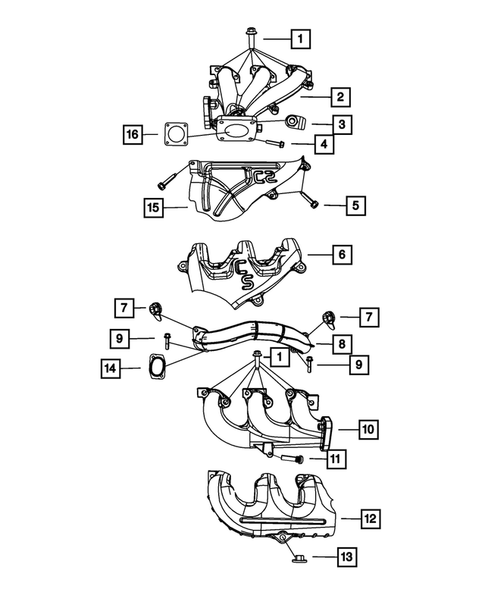

No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M8x1.25x30. Power Take Off Unit To Transmission Differential
MSRP $5.70
$4.05
MSRP $5.70
$4.05
3
Hex Flange Nut, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M8x1.25. Front Exhaust Pipe To Exhaust Manifold
MSRP $6.20
$4.48
MSRP $6.20
$4.48
4
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M8X1.25X45.00. Front Timing Cover To Cylinder Block[M8x1.25x45.00]
MSRP $11.10
$7.99
MSRP $11.10
$7.99
5
Hex Head Bolt And Coned Washer, Mounting Right Side Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M6X1.00X37.00. Heat Shield To Exhaust Manifold
7
Nut, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M10x1.50. Crossover Pipe To Exhaust Manifold
MSRP $6.25
$4.48
MSRP $6.25
$4.48
8
Exhaust Manifold Crossover Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: Includes Gaskets(2) and Screws(4)
9
Hex Flange Head Bolt, Mounting Right Side Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M10X1.50X43.00. Crossover Pipe To Exhaust Manifold
13
Hex Nut-sealing Washer Nut And Washer, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M6 x 1.00. M6X1.00. Transfer Case Cover To Floor Pan
MSRP $13.90
$10.04
MSRP $13.90
$10.04
13
Hex Nut And Washer, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: M6x1.0. Left Heat Sheild To Exhaust Manifold
14
Crossover Pipe Gasket Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: To Exhaust Manifold
MSRP $61.40
$42.15
MSRP $61.40
$42.15
15
